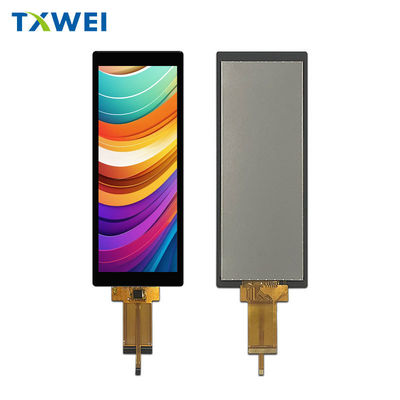

6.2-inch MIPI interface 360*960 long strip 500 brightness LCD display screen TFT LCD screen

Produk

6.2-inch MIPI interface 360*960 long strip 500 brightness LCD display screen TFT LCD screen

MOQ:	1
harga:	Dapat dinegosiasikan
Periode pengiriman:	7-16 hari
Cara Pembayaran:	L/C, D/A, D/P, T/T.
Kapasitas pasokan:	10000 pcs

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal

Shenzhen

Nama merek

TXWEI

Sertifikasi

CE FCC ROHS

Nomor model

TXW620001B0-DJ01

Dokumen

Jumlah piksel:

360*960

Arah menonton:

Antarmuka tampilan:

Kecerahan:

500nit

Area aktif:

55.3*147.46 (mm)

Ukuran garis besar:

68*165*3.93 (mm)

Suhu operasi:

-20+70 ℃

Suhu penyimpanan:

-30+80℃

Teknologi Sentuh:

antarmuka sentuh:

Sentuh IC:

GT911

Menyoroti:

6.2-inch MIPI interface TFT LCD screen

360*960 long strip LCD display

500 brightness TFT LCD screen

Deskripsi Produk

6.2 Inch TFT LCD Module with Touch: TXW620001B0-YRD01 for Smart Devices

Meta Description:
Discover the TXW620001B0-YRD01, a 6.2" TFT LCD display module with capacitive touch, 360×960 resolution, and MIPI DSI interface. Ideal for industrial, medical, and smart home applications.

If you're sourcing a reliable, high-quality 6.2 inch TFT LCD module with touch, the TXW620001B0-YRD01 from Shenzhen Tianxianwei Technology (TXW) is a standout solution. Designed for performance and durability, this display module combines sharp visuals, responsive touch, and compact design—perfect for modern smart devices.

Product Overview: TXW620001B0-YRD01

The TXW620001B0-YRD01 is a 6.2-inch TFT LCD display module integrated with a capacitive touch panel (CTP). It features a 360×RGB×960 resolution, MIPI DSI 2-lane interface, and ST7701SN driver IC, making it ideal for applications that require clear visuals and reliable touch interaction.

ITEM

Sandard value

Unit

LCD Type

Normally Black

--

Drive element

TFT active matrix

--

Number of pixels

360*3RGB(H)X960(V)

Dots

Pixel arrangement

RGB Vertical Stripe

--

Pixel Pitch (W*H)

0.1536 (H) x 0.1536 (V)

mm

Active area

55.30(H) x 147.46(V)

mm

Viewing direction

ALL O’CLOCK

--

TFT Driver IC

ST7701SN

--

TFT interface

2lane MIPI Interface

--

LCM Size(W*H*T)

58.10(W) ×154.90(H) ×2.30(T)

mm

LCM+CTP Size(W*H*T)

68.00(W) ×165.00(H) ×3.93(T)

mm

Approx. Weight

TBD

g

Touch structure

                 G+F+F

--

Touch Driver IC

GT911

--

Touch Interface

I2C

--

Why Choose TXW620001B0-YRD01?✅ High-Resolution DisplayWith 360×RGB×960 pixels, this module delivers crisp and vibrant images, suitable for UI-rich applications like smart panels, medical interfaces, and portable instruments.
✅ Responsive Capacitive TouchThe G+F+F touch structure ensures multi-touch support, high sensitivity, and durability, even in frequent-use environments.
✅ Wide Viewing AngleThanks to its ALL O’CLOCK viewing direction, the display maintains excellent visibility from all angles—ideal for handheld or mounted devices.
✅ MIPI DSI InterfaceThe 2-lane MIPI DSI interface provides high-speed data transmission with low power consumption, perfect for battery-powered or compact systems.
✅ Industrial-Grade ReliabilityTXW display modules are rigorously tested for temperature, humidity, and shock resistance. The TXW620001B0-YRD01 is built to perform in demanding environments.
ApplicationsThis 6.2 inch TFT LCD with touch is ideal for:
Smart home control panels
Industrial HMI devices
Medical monitors
IoT terminals
Consumer electronics
Handheld instrumentation
SEO Keywords (Naturally Integrated)6.2 inch TFT LCD module
TFT LCD with capacitive touch
360×960 LCD display
MIPI DSI interface LCD
Industrial touch screen module
ST7701SN display module
China LCD manufacturer
Custom LCD module supplier
About TXW (Shenzhen Tianxianwei Technology)TXW is a leading LCD module manufacturer based in Shenzhen, China. We specialize in small-to-medium size TFT displays, offering both standard and customized solutions. Our products are widely used in industrial, medical, and consumer electronics applications worldwide.

We provide:
Fast sampling (as quick as 7 days)
Flexible MOQ (starting from 100 pcs)
Technical support from design to mass production
Export experience to North America, Europe, and Southeast Asia

Tag:

500 cd/m2 TFT LCD Display,

5 inci TFT LCD Display,

Tampilan IPS LCD 550cd/m2
