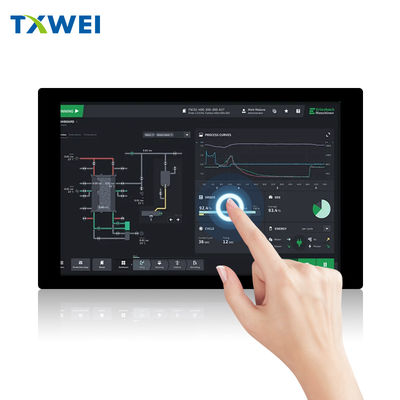

10.1-inch LCD industrial computer screen, 1200*1920 high brightness 600 MIPI interface

TXW100048N3-CTP: A 10.1-inch ultra bright high-resolution industrial touch display module designed for harsh environments - allowing information to remain sharp in sunlight and touch to remain accurate in extreme environments

In the current era of rapid popularization of Industry 4.0, smart healthcare, and outdoor self-service terminals, traditional consumer grade screens are no longer able to meet the composite needs of "readable under sunlight, touchable with gloves, and uninterrupted operation 24/7". TXW100048N3-CTP was born against this backdrop: it combines consumer grade fine picture quality with industrial grade durability, providing engineers and product managers with a "one-stop" display solution with hardcore indicators such as 600 nits ultra-high brightness, 1200 × 1920 vertical high resolution, full view IPS, G+G strengthened glass touch, and -10 ℃~+60 ℃ wide temperature operation.

600 nits ultra bright screen: still clear under noon sunlight
By combining high brightness LED backlight with low haze polarizer, the typical brightness can reach 600 cd/m ², and outdoor readability is improved by 40% compared to traditional 300 nits screens; Combined with optional anti glare (AG) coating, further reducing specular reflection.
1200 × 1920 vertical high score: one screen can accommodate more information
224 PPI pixel density brings a similar level of delicacy to a flat panel; 16: The 10 vertical ratio allows SCADA, medical HIS, building intercom and other vertical UI to have a global view without scrolling.

Full view IPS: 178 ° without color cast
Whether viewed from the side or up, the color and contrast remain consistent, meeting the needs of multi person collaboration scenarios.
G+G fully bonded capacitive touch: can be operated with wet hands or gloves
1.1 mm+1.1 mm double strengthened glass structure, with a Mohs 7H surface hardness; CHSC54481 Touch IC supports 10 finger touch and gesture recognition, ESD ≥ 8 kV, Worry free plugging and unplugging on industrial sites.

Industrial grade wide temperature range: from cold chain in cold regions to scorching sun charging stations-The working temperature is 10 ℃~+60 ℃, and the storage temperature is -20 ℃~+70 ℃. After 48 hours of temperature cycling, 48 hours of salt spray, and 1000 hours of high temperature and high humidity reliability verification.

High speed MIPI-DSI: One step integration with mainstream controllers

4-Lane MIPI, Single Lane up to 1.0 Gbps, seamlessly connects i.MX8M Plus, RK3588, Qualcomm QCM series; 40 pin 0.5 mm FPC has a plug and unplug life of ≥ 50 times.

Application scenarios beyond imagination and within reason
• Industrial computer and edge computing gateway: it can act as HMI in noisy workshops, and can be precisely selected when wearing gloves.
• Smart medical terminal: ward entrance screen, mobile nursing vehicle, anesthesia monitor, high brightness+full view for medical staff to quickly confirm information.
• Outdoor self-service devices: charging stations, express lockers, scenic spot ticket machines, readable even under direct sunlight.
• Security and building intercom: Unit door screen, elevator car screen, -10 ℃ in winter, outdoor screen will not be black in the north

display
• Size: 10.1 inches, 16:10
Resolution: 1200 (H) × 1920 (V)
• Brightness: 600 cd/m ² Typ
• Contrast ratio: 1000:1
• Color gamut: 72% NTSC, 16.7 million colors
• Perspective: 89 °/89 °/89 °/89 ° (IPS)
Response time: 25 ms (Tr+Tf)

interface
• Display: MIPI-DSI 4-Lane, 40 pin 0.5 mm FPC
• Touch: I ² C, 400 kHz, INT interrupt

structure
• Appearance: 155.9 × 250 × 4.61 mm
• Effective display area: 135.36 × 216.58 mm
• Cover plate: 1.1mm reinforced soda lime glass (optional AR/AF/AG)

environment
• Working temperature: -10 ℃~+60 ℃
Storage temperature: -20 ℃~+70 ℃
ESD: Contact 8 kV, air 15 kV
Reliability: No functional failure at 60 ℃/90% RH for 1000 hours

From mechanical shock to chemical corrosion, from dust to temperature limits, the touch screen of TXW100048N3-CTP has passed industrial grade reliability verification. As long as shock-absorbing gaskets and sealing strips are properly installed on the product side, this screen can be stably used for more than 5 years in "high impact+high corrosion+all-weather" scenarios such as outdoor charging stations, cold chain forklifts, and surgical carts.
